DX51D JISG Electricial Equipment PPGL Steel Coil Prepainted

  • 1
  • 2

Brand Name : HUIYI-PPGL

Model Number : CGCC,G300,CGCH,G550,CGLCC,CGLCH,G450,DX51D

Certification : SGS,BV,ISO

Place of Origin : CHINA

MOQ : 25 MT

Price : Based on actual requirements

Payment Terms : L/C, D/P, T/T

Supply Ability : 5000 tons per month

Delivery Time : 20-35days

Packaging Details : waterproof paper， high density PE film，iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical

Product name : electricial equipment Prepainted Color Steel Coils

Color : Pink,Green,Yellow,Orange,Black,All ral colors

surface treatment : Coated,Galvalume

front paint coating : 15-35um

back paint coating : 5-15um

Coil weight : 3-5mt, Max 5mt, based on requirements

Grade : CGCC,CGLCC,G550,G450,G400,DX51D

Packing : waterproof paper， high density PE film，iron sheet with metal edge protectors, strapped with metal bands, min 4 bands horizontal, min 3 bands vertical

Coil ID : 508mm, 610mm

Type : Corrugated sheet,flat,coil

Contact Now

JISG custom cut , electricial equipment Prepainted galvlaume / PPGL Steel Coil

PPGL steel coil introduction :

PPGL steel coil plate :is the products coated steel sheet (galvanized , zinccalumed , cold plate , etc.)after surface chemical treatment (degreasing , phosphating , and chromium hydrochloric acid passivation )and coated (rolled ) with coatings , again baking to forming.Pre-painted coils are produced by coating a layer of paint on the surface of cold rolled,galvanized or galvalume coils. Aesthetic appeal and durability are the key features of color coated steel coils.A wide selection of colors is available to the customer and paints designed to meet specific end use could be specified.Our pre-painted coils are suitable for direct interior as well as exterior application, sandwich panels and so on.Pre-painted steel coil/Color coated steel coil, produced by printing or baking paints onto the surface of cold-rolled steel or GI or GL sheets.That features a wide range of colors and patterns which are commonly used to make the exterior of buildings and consumer electronics products look more polished and sophisticated. They are made on high-speed continuous coating lines through a number of processes such as chemical pre-treatment, primary coating and finish coating, thus they have better coating quality than single piece coating.

Specification of PPGL steel coil :

■ Standard: JIS G3312-1998, ASTM A755, GB/T12754-2006

■ Grade: SPCC,SPCD,SPCE,DX51/52/53/54D+Z,Q195/215/235 And Etc

■ Base Metal: Cold Rolled Steel/Galvanized Steel/Galvalume Steel

■ Material Thickness: Normally 0.15-1.5mm

■ Width: 30-1500mm(Mainly in 914mm,1000mm,1219mm and 1250mm)

■ Coating: PE/PVDF/SMP

■ Coating Thickness: Min Single Side --- 50g/sqm Max Single Side --- 275g/sqm

■ Top Painting: 13-20 micrometer

■ Back Painting: 7-10 micrometer

■ Surface Finished Color: According To RAL Standard

■ Packing Condition: Seaworthy

some exporting sizes of PPGL steel coil as below:

SHANGHAI HUIYI INTERNATIONAL CO.,LTD
Room 710,No.188,ChangYi Road,Baoshan District,Shanghai,China.
WOODEN PPGL EXPORTING SIZES
Size Zinc Coating Paint coating Color Paint Brand Application Export Countries
0.18x914 AZ30-AZ60 15-20um

white,red,blue,green,

grey,yellow,brown,ral colors and etc

Akzo nobel ,Nippon,Dulux,PPG,

wanbo,zhengniang,

wente and etc

 Roofing metal,roller shutter doors,cold storage door cold bed,warehouse,factory, household electrical appliances and etc.

Singapore,Malaysia, Thailand,Brunei,

Dubai,

The Philippines, Ukraine
0.20x914 AZ30-AZ60 15-20um
0.22x914 AZ30-AZ60 15-20um
0.28x914 AZ30-AZ60 15-20um
0.30x914 AZ30-AZ60 15-20um
0.32x914 AZ30-AZ60 15-25um
0.36x914 AZ30-AZ60 15-25um
0.38x914 AZ60-AZ80 15-25um
0.40x914 AZ60-AZ80 15-25um
0.46x914 AZ60-AZ80 15-25um
0.47x914 AZ60-AZ80 15-25um
0.40x1220 AZ60-AZ150 20-30um
0.48x1220 AZ60-AZ150 20-30um
0.50x1220 AZ60-AZ150 20-30um
0.54x1220 AZ60-AZ150 20-30um
0.60x1220 AZ60-AZ150 20-30um
0.80x1220 AZ80-AZ150 20-30um
1.00x1220 AZ80-AZ150 20-30um

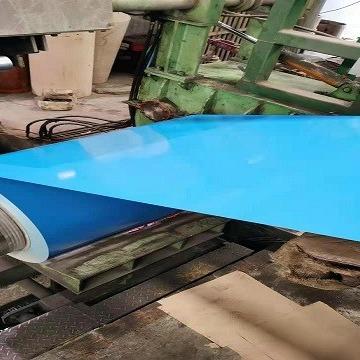

Loading pictures of PPGL steel coil :

DX51D JISG Electricial Equipment PPGL Steel Coil Prepainted

DX51D JISG Electricial Equipment PPGL Steel Coil Prepainted
